Descrição
- Produto usado

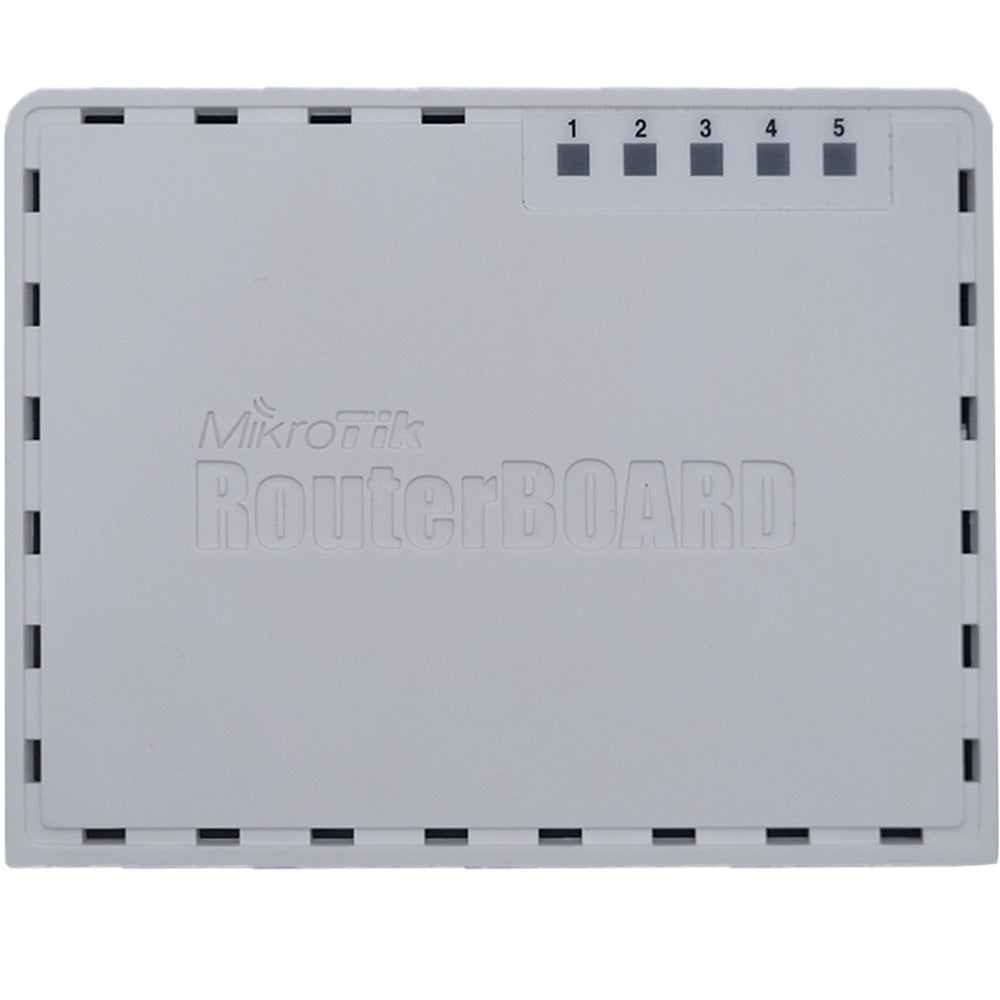

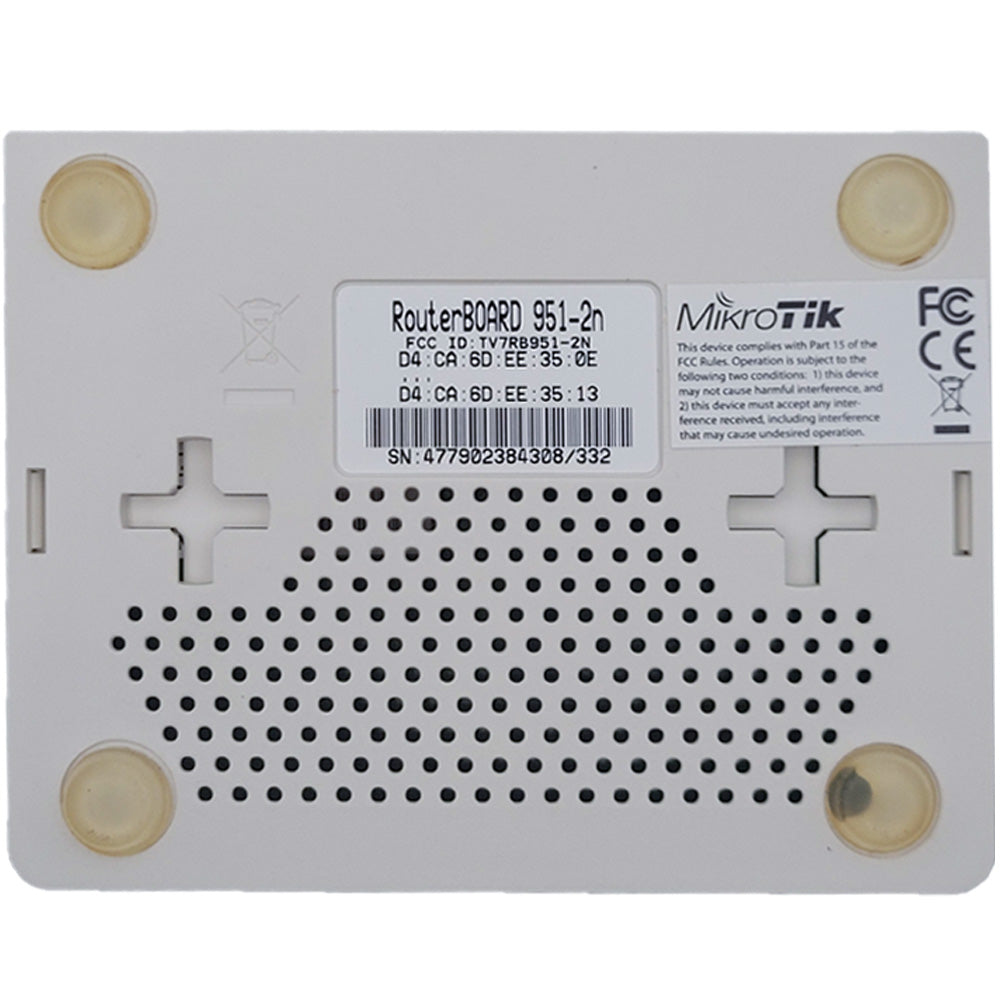

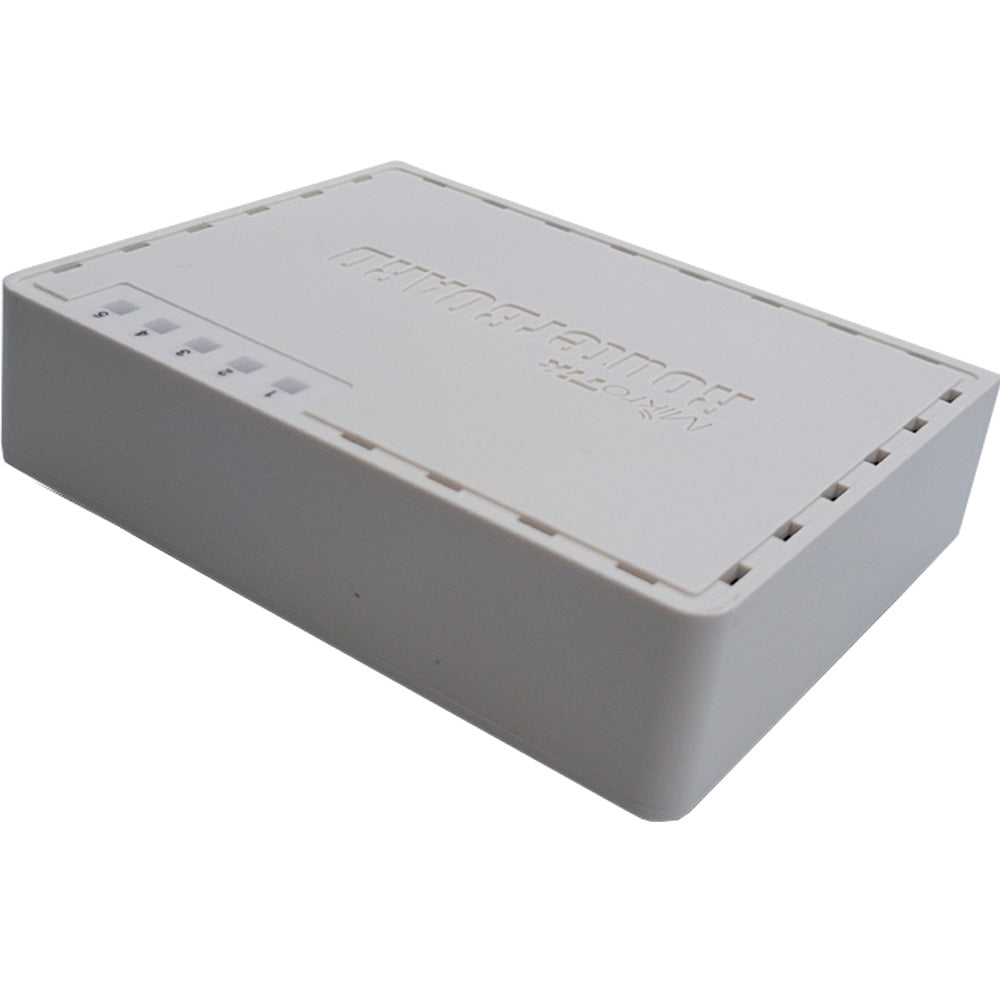

Mikrotik- Routerboard Rb 951 Séries
O RB951Ui-2HnD é um SOHO AP wireless com um CPU Atheros nova geração e mais poder de processamento.
Tem cinco portas Ethernet, uma porta USB 2.0 e um alto poder de 2.4GHz 1000mW 802.11b / g / n AP wireless com antenas embutidas.
Ele tem uma CPU de 600MHz, 128MB de RAM e função de saída PoE para a porta # 5
É possível alimentar outros dispositivos capazes PoE com a mesma tensão que aplicado para a unidade.
Carga máxima na porta é 500mA.
Product code RB951Ui-2HnD
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 0
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model AR9344-DC3A
Wireless standards 802.11b/g/n
Number of USB ports 1
Power Jack 1
802.3af support No
Supported input voltage 7 V - 31 V
PoE in Yes
PoE out Yes
Voltage Monitor No
CPU temperature monitor No
PCB temperature monitor No
Dimensions 113x138x29mm
Operating System RouterOS
Operating temperature range -20C +50C
License level 4
Antenna gain DBI 2.5
Current Monitor No
CPU AR9344-DC3A
Max Power consumption Up to 7W
SFP ports 0
SFP+ ports 0
USB slot type USB type A
Number of chains 2
Serial port None
Features RB951Ui-2HnD (USB, power injector, USB, 2GHz, 802.11n, dual chain)
CPU Atheros AR9344 600MHz CPU
Memory 128MB DDR2 onboard memory
Ethernet Five independent 10/100 Ethernet ports
LEDs Power, NAND activity, 5 Ethernet LEDs, wireless activity LED
Power in PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC
Power out PoE passive on port 5, same voltage as input.
Dimensions 113x138x29mm
Weight Without packaging and PSU: 232g, full weight in package: 420g
Power consumption Up to 7W
Operating Temp -20C .. +50C
Operating System MikroTik RouterOS, Level4 license

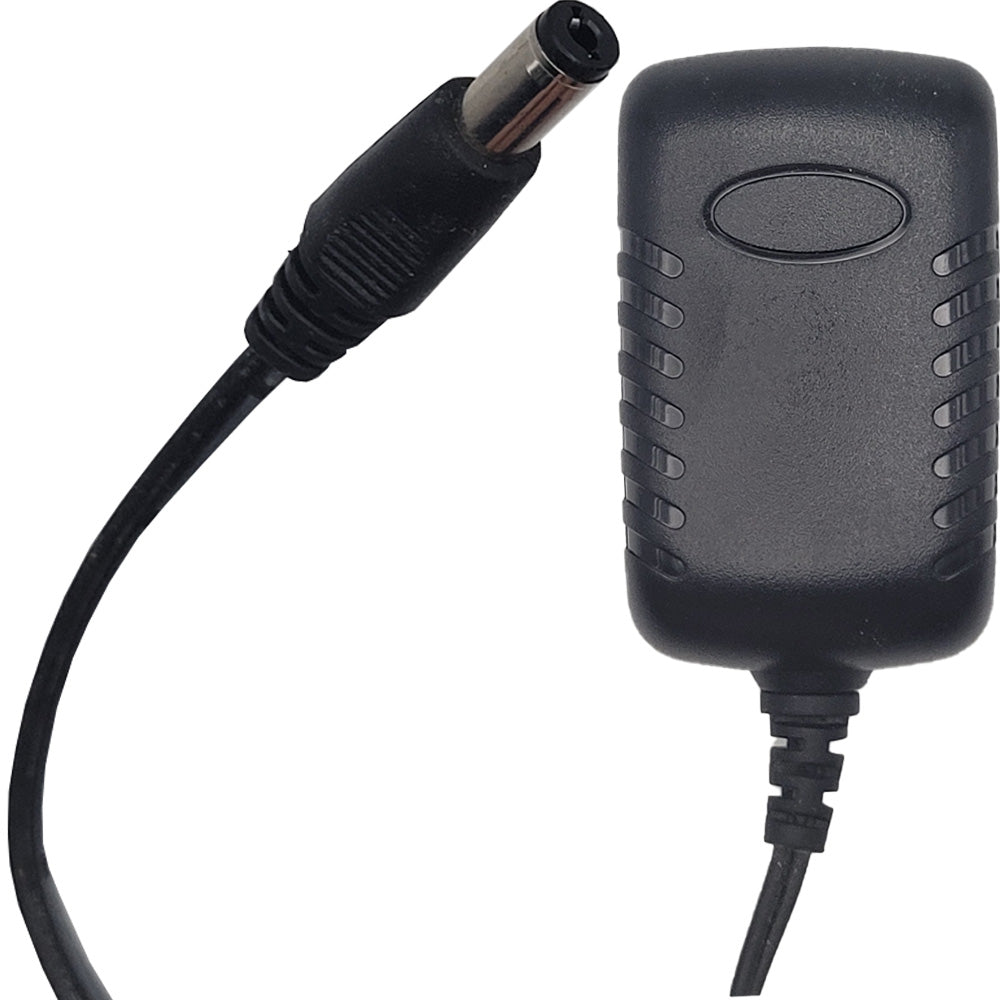

Package contains RouterBOARD in a plastic case, 24V 0.8A power adapter
Antennas 2x2 MIMO PIF antennas, max gain 2.5dBi
RX sensitivity 802.11g: -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s
802.11n: -96dBm @ MCS0 to -78dBm @ MCS7
TX power 802.11g: 30dBm @ 6Mbps to 25dBm @ 54 Mbps
802.11n: 30dBm @ MCS0 to 23dBm @ MCS7
Modulations OFDM: BPSK, QPSK, 16 QAM, 64QAM; DSSS: DBPSK, DQPSK, CCK
