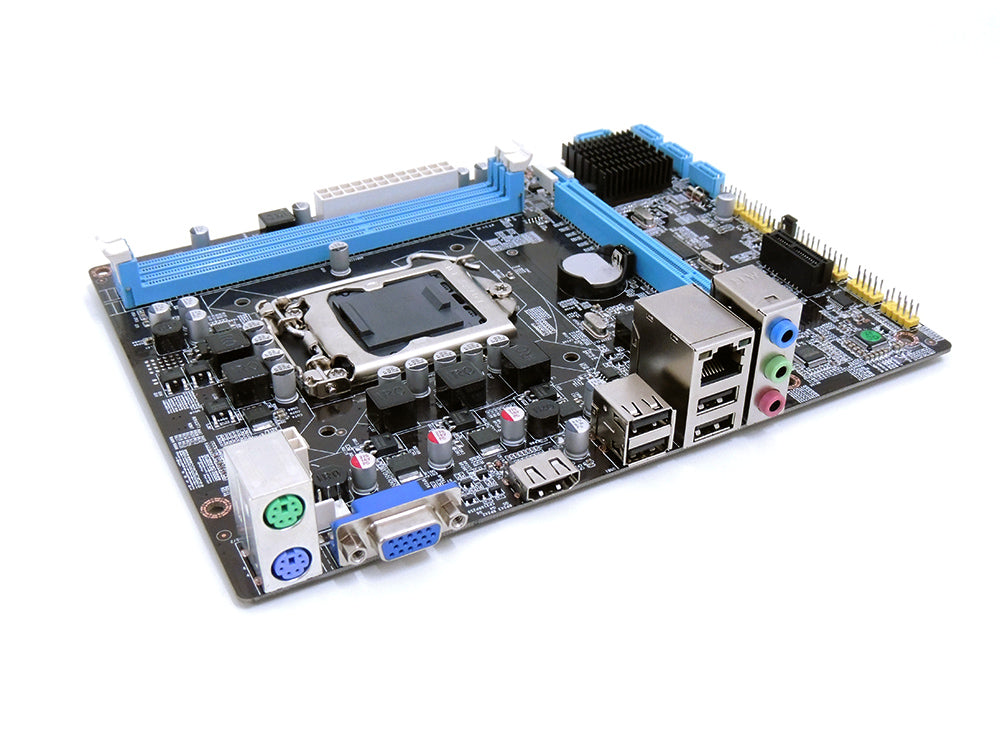

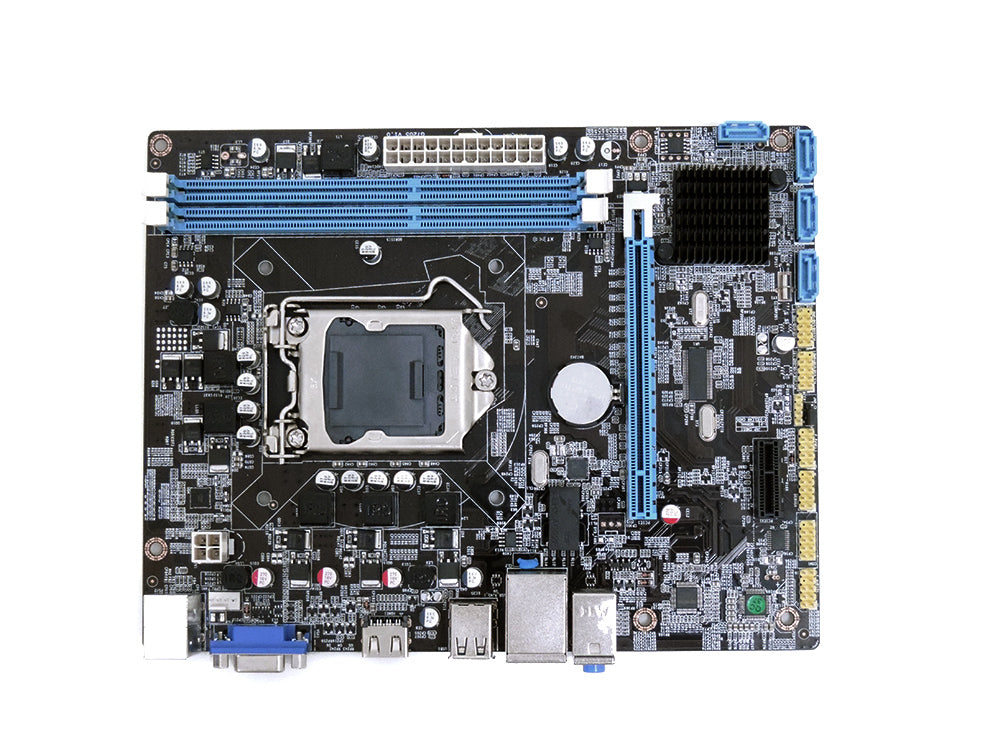

Placa Mãe Lga 1156 Ddr3 TG-H55-M Hdmi 2°/3° Ger. Foxconn
| Processor | Intel® Core™ i7,Core™ i5,Core™ i3 processors, Socket LGA1156 |
| Chipset | Intel® H55 |
| Front Side Bus | |
| Memory | Dual channel DDR3 1600(oc)/1333/1066/800 x 4 DIMMs, Max. 16GB |
| VGA on Die | Integrated Intel® GMA HD graphics engine(need CPU support) |
| Expansion Slots | 1* PCIe2.0 x16, 1* PCIe x1,2* PCI |
| IDE | N/A |
| Serial ATA(SATA)/RAID | 6* SATAII |
| Audio | 7.1 channel HDA |
| LAN | Gigabit LAN |
| IEEE1394 | N/A |

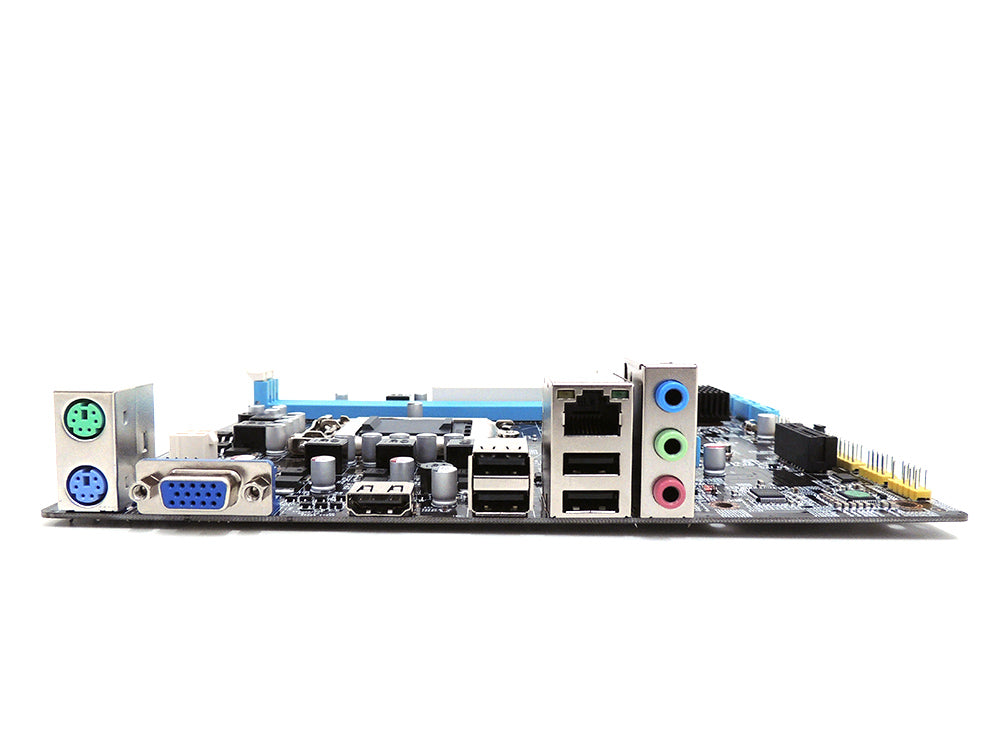

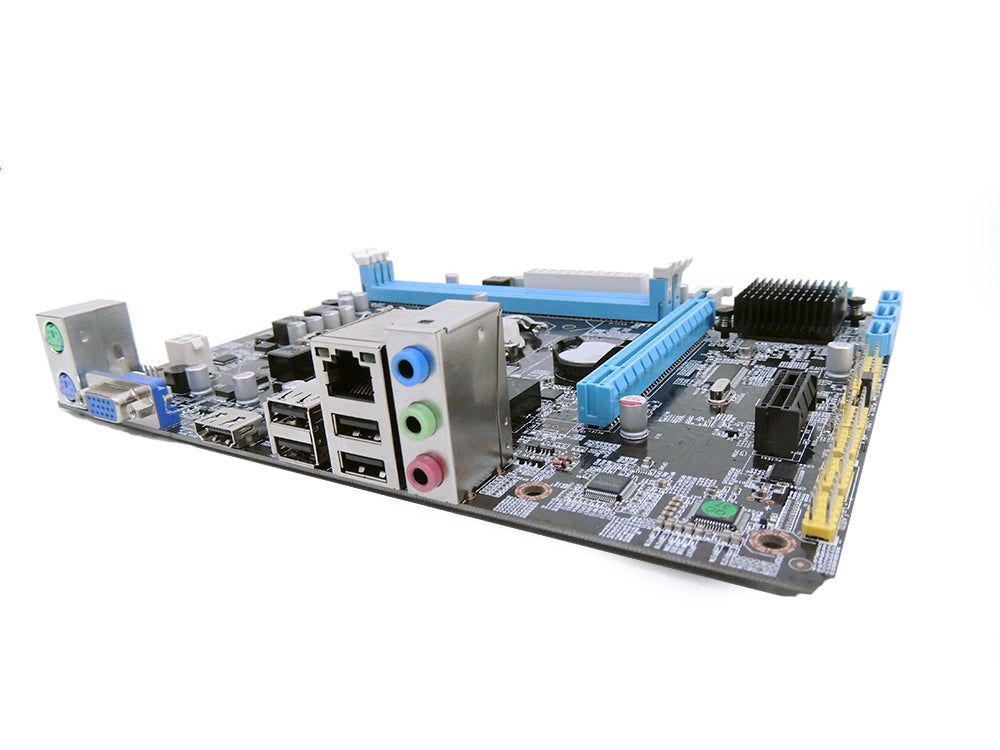

| Back Panel I/O Ports | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x VGA connector 1 x DVI connector 1 x Audio jack supports 6 jacks 6 x USB 2.0 ports 1 x RJ45 LAN port 1 x Serial port |
| Internal I/O Connectors | 1 x ATX 24-Pin power connector 1 x 4-pin ATX 12V power connector 2 x 4-pin CPU / System Fan connectors 1 x Front pannel header 1 x TPM header 1 x LPT header 1 x Speaker header 3 x USB 2.0 connectors support additional 6 ports 6 x Serial ATAII connectors 1 x Front Audio Header 1 x S/PDIF Out header 1 x Intrusion Alarm header 1 x CIR header 1 x COM header |
| BIOS Features | 64Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI |
| Support CD | Drivers, Adobe Reader, SuperUtilities, Norton Internet Security |
| Standards/Manageability | PCI 2.3, USB2.0, DMI 2.5 |
| Special Features | |
| Form Factor | Micro ATX (9.6" x 9.0") |
