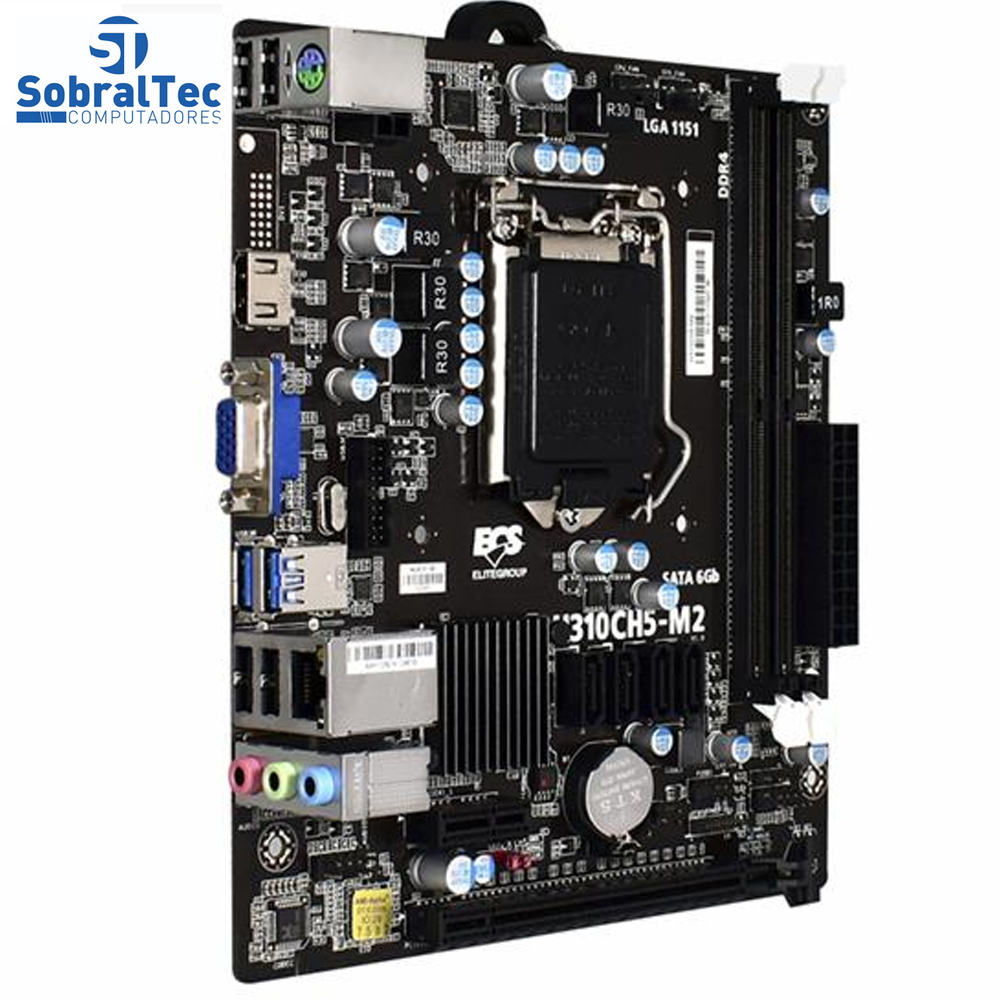

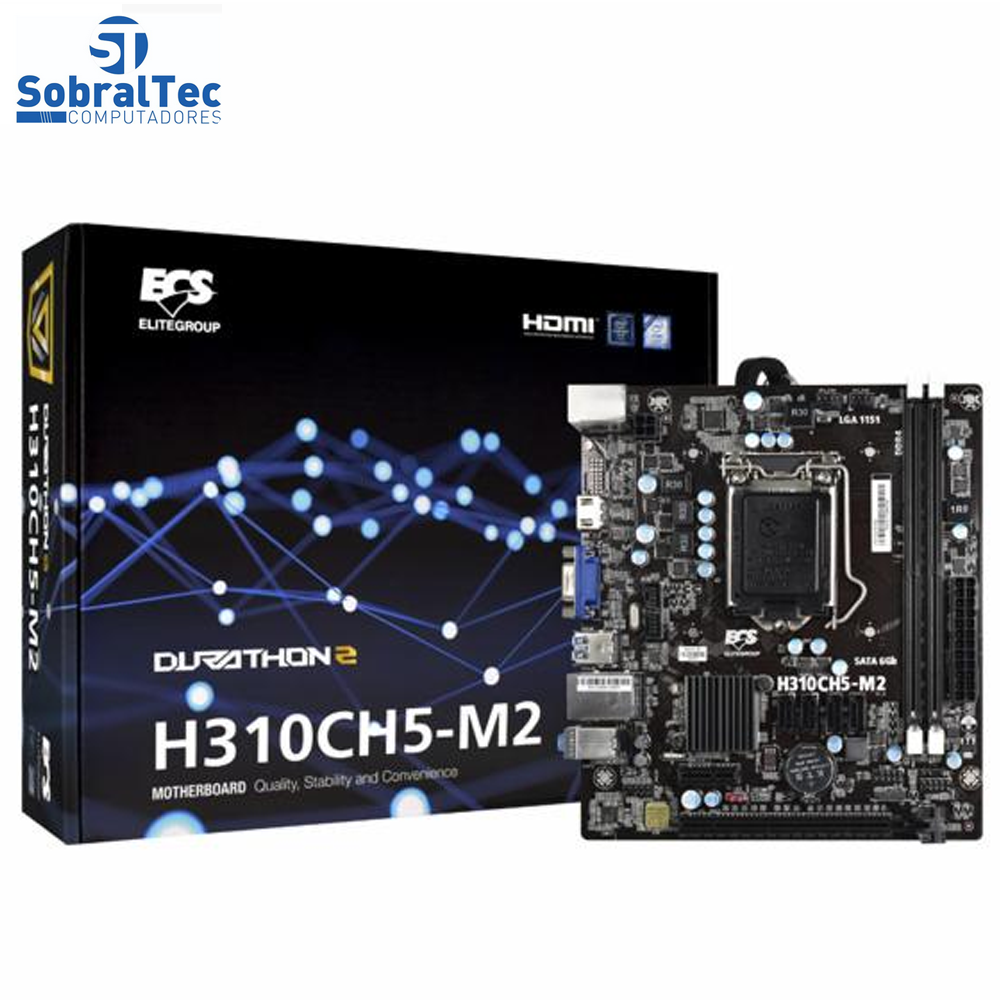

Placa Mãe 1151 DDR4 ECS H310Ch5 Vga Hdmi Usb3.1- Lan Som Micro-Atx Sata3
DETALHES DO PRODUTO
| INFORMAÇÕES BÁSICAS | |
|---|---|
| Marca | ECS |
| Video Onboard | Tem vídeo onboard |
| Soquete | LGA 1151 |
INFORMAÇÕES DO PRODUTO
CPU
Supports 8th gen Intel Core. family/ Pentium / Celeron series
processors for LGA 1151 socket
100% Solid capacitor design
Please refer to CPU support list for details
CHIPSET
Intel? H310 Express Chipset
GRAPHICS
Supports DirectX? 12
MEMORY
Dual-channel DDR4 Memory architecture
Supports DDR4 2666/ 2400 non-ECC, Un-buffered SDRAM Memory
2 X 288-pin DDR4 DIMM socket
Support up to 32 GB*
EXPANSION SLOT
1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 2.0 slot(s)
STORAGE
Support by Intel? H310 Express Chipset
* 4 X Serial ATAIII 6Gb/s
AUDIO
6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC
Realtek ALC662
.Realtek ALC662 6-channel High Definition audio CODEC
.Meets performance requirements for Microsoft WLP 3.08 Vista premium
and mobile PCs
.Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio
solution
.Emulation of 26 sound environments to enhance gaming experience
.Voice Cancellation and Key Shifting in Karaoke mode
.Compatible with Direct Sound 3D., A3D., I3DL2
LAN
Realtek 8111H Gigabit Fast Ethernet Controller
Wake-On-LAN
USB
Support by H310 Express Chipset
* 4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s
---- Back Panel 2 port(s)
---- Onboard 2 port(s)
* 6 X USB2.0 port(s) Up to 480 Mb/s
---- Back Panel 4 port(s)
---- Onboard 2 port(s)

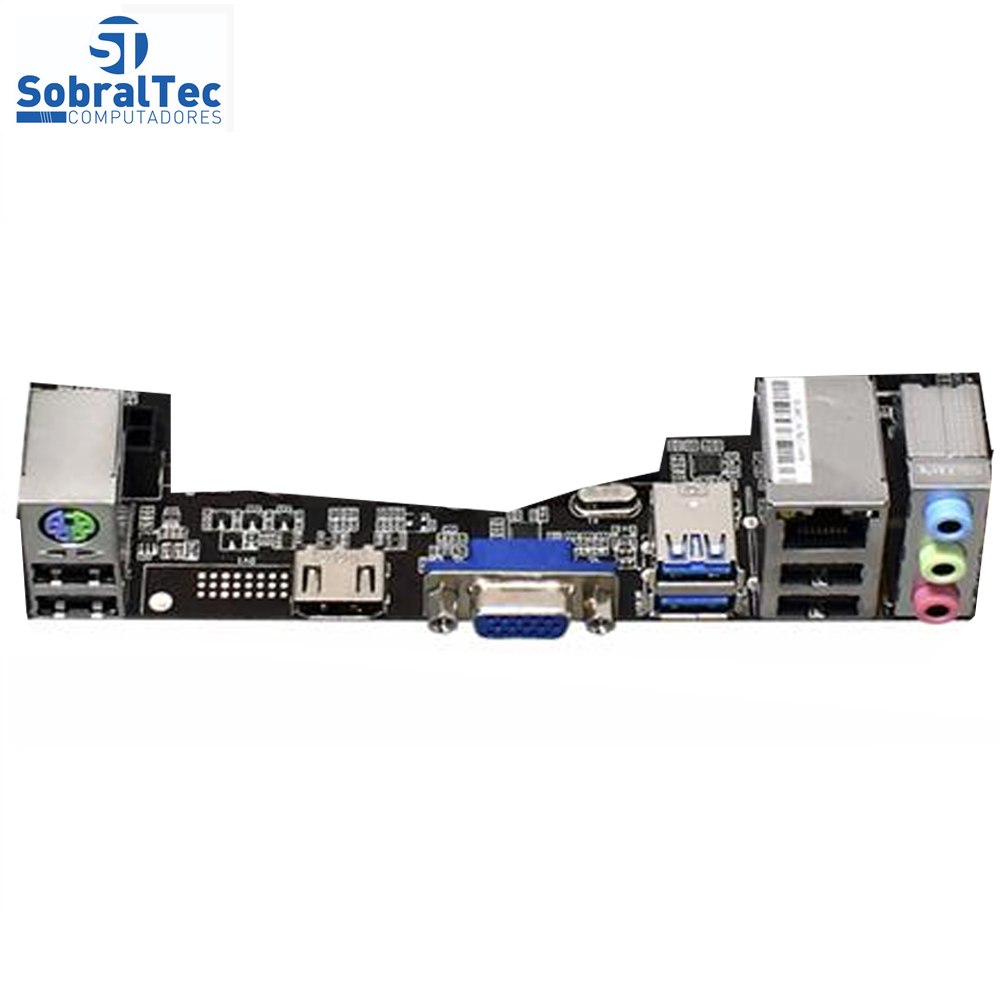

REAR PANEL I/O
1 X PS/2 combo connector
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X D-Sub (VGA) port(s)
1 X HDMI port(s) (DVI port(s), optional)
2 X USB 3.2 Gen 1x1 port(s)
4 X USB2.0 port(s)
CONNECTORS e HEADERS
1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector with smart fan
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X Onboard Buzzer
1 X USB 3.2 Gen 1x1 header
* Support additional 2 USB ports
1 X USB 2.0 header
* Support additional 2 USB ports
1 X CLR_CMOS header
1 X TPM header
1 X Chassis intrusion header
SYSTEM BIOS
AMI BIOS with 64 MB SPI Flash ROM
ACPI e DMI
F7 hot key for boot up devices option
Dual Display
Support GUI UEFI BIOS
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Supports PgUp clear CMOS Hotkey
FORM FACTOR
mATX Form Factor
190mm x 170mm
OS SUPPORT
Windows 10 64-bit
